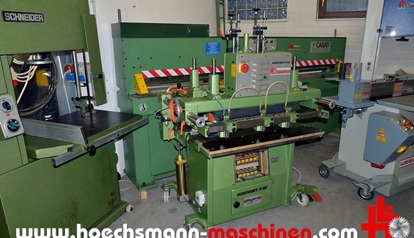

Ayen HORIVERT 2-46

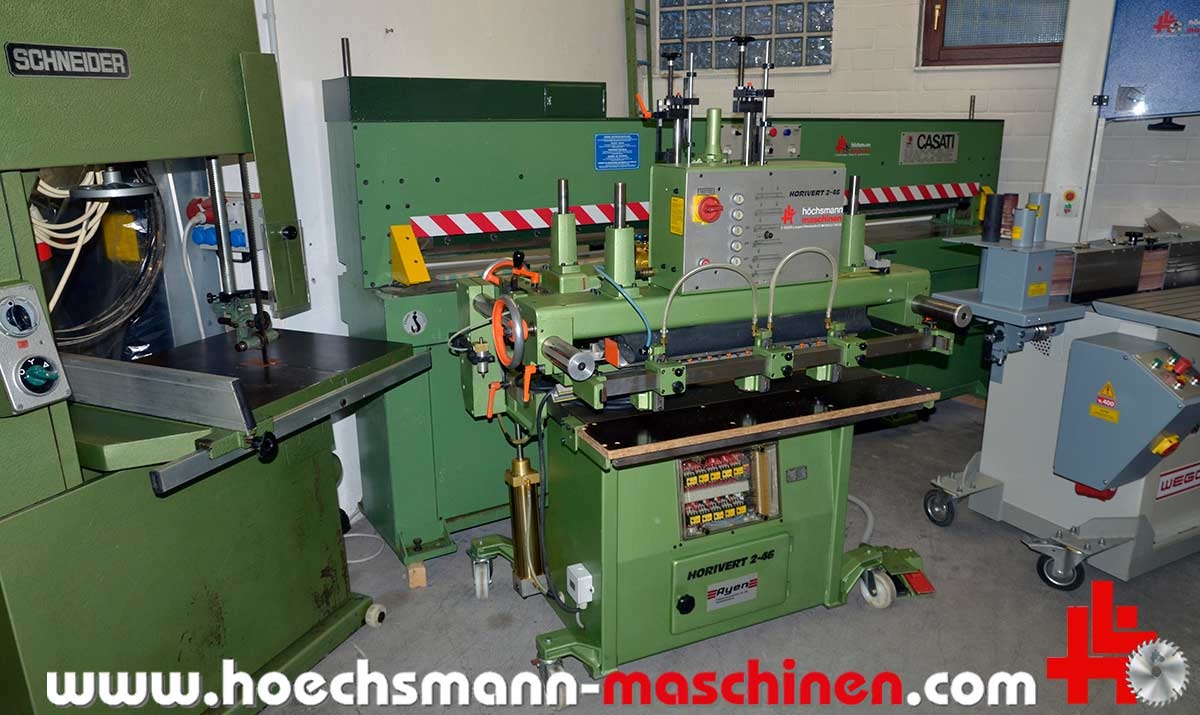

Automatic dowel boring machine

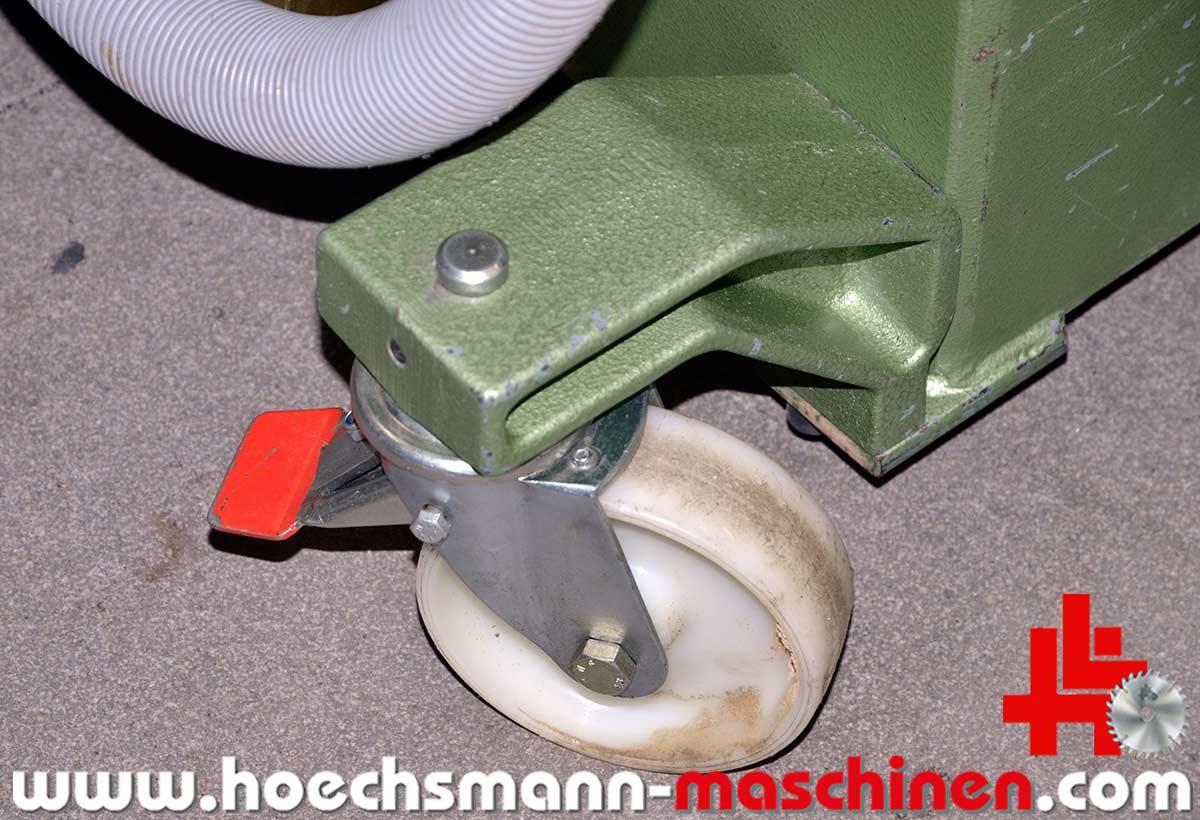

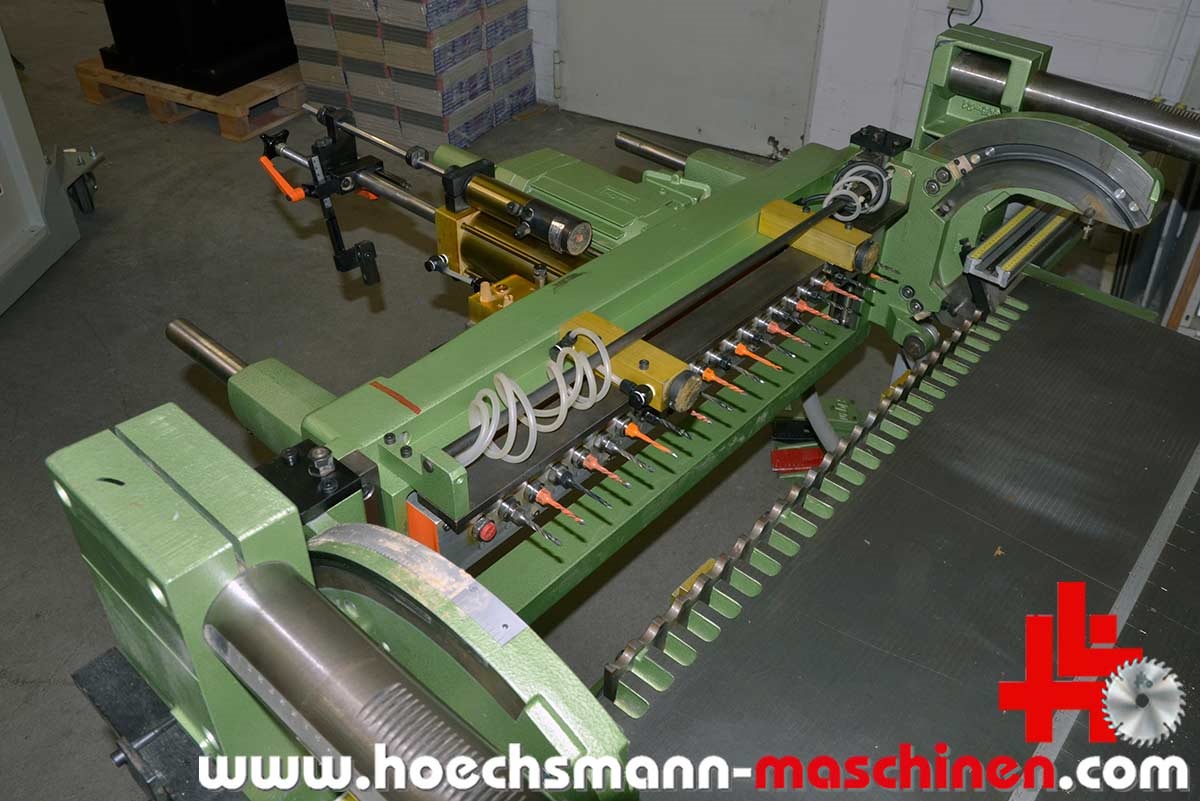

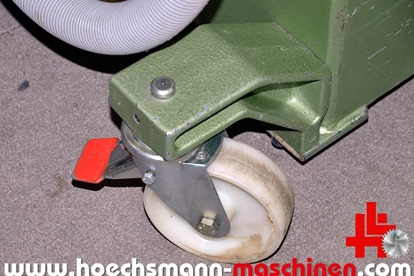

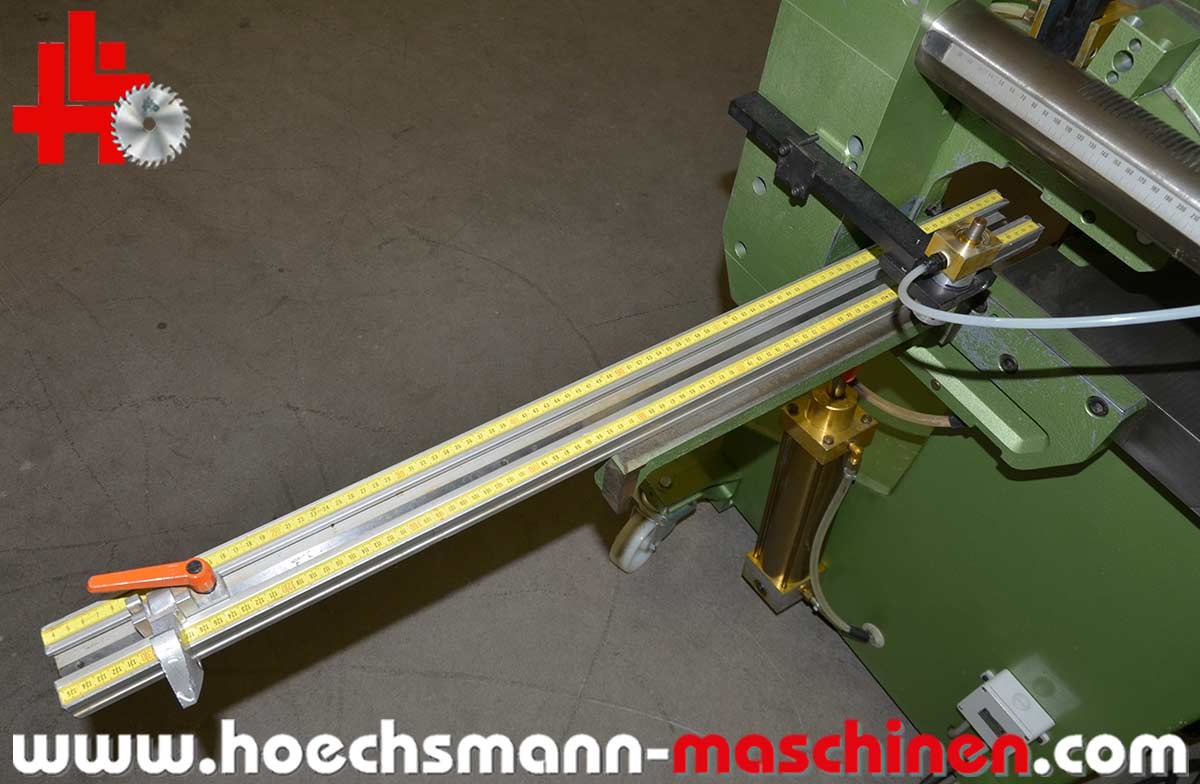

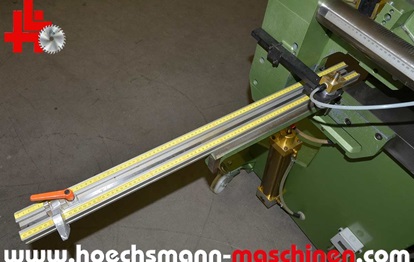

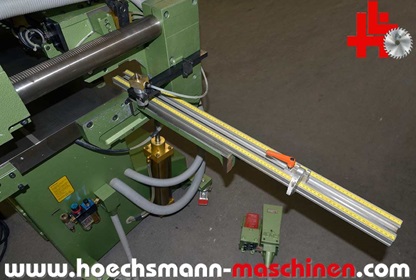

The machine has a compact design so that the stable cast iron table top, the swivel device and the drilling beam assembly form a torsion-free, high-precision unit.
and the drilling beam assembly form a torsion-free, high-precision unit. The complete work unit is mounted on a sturdy machine frame.
mounted on a stable machine frame.

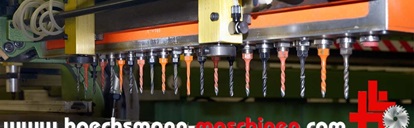

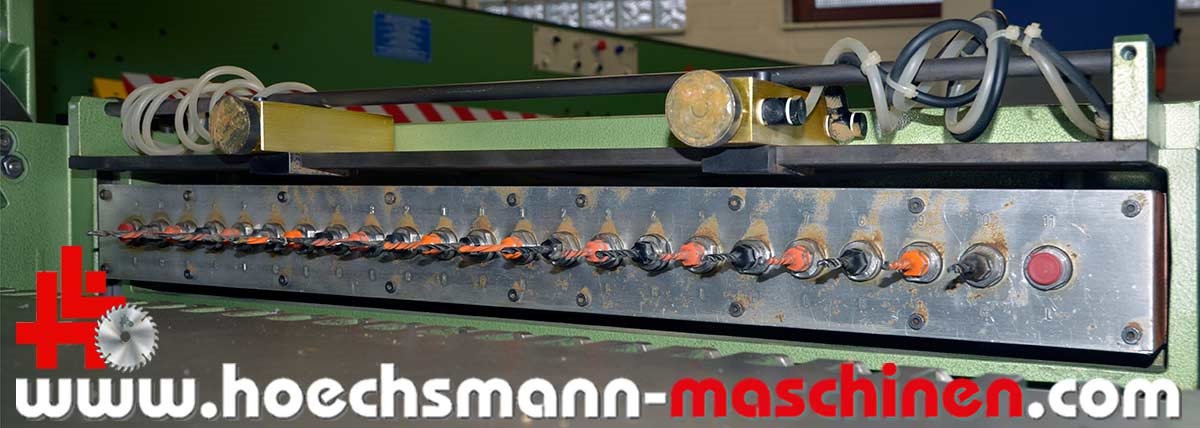

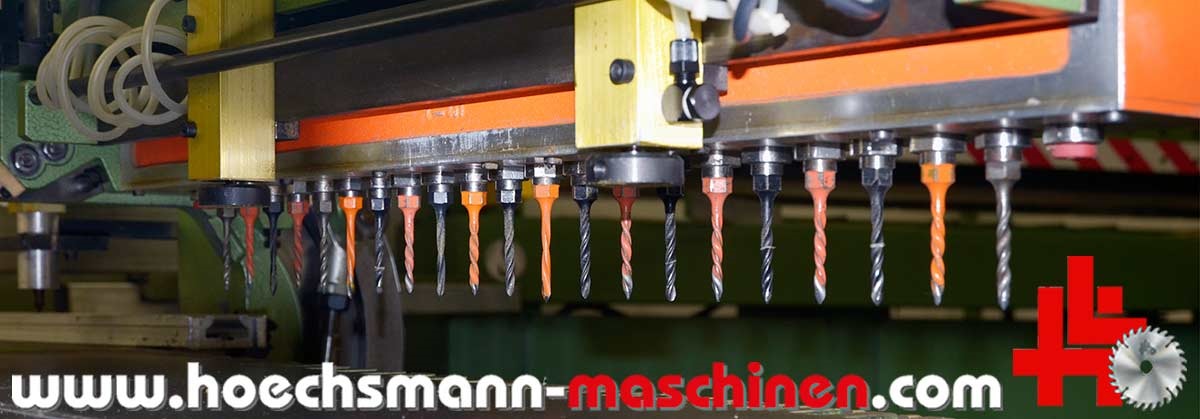

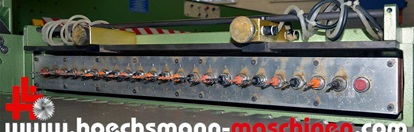

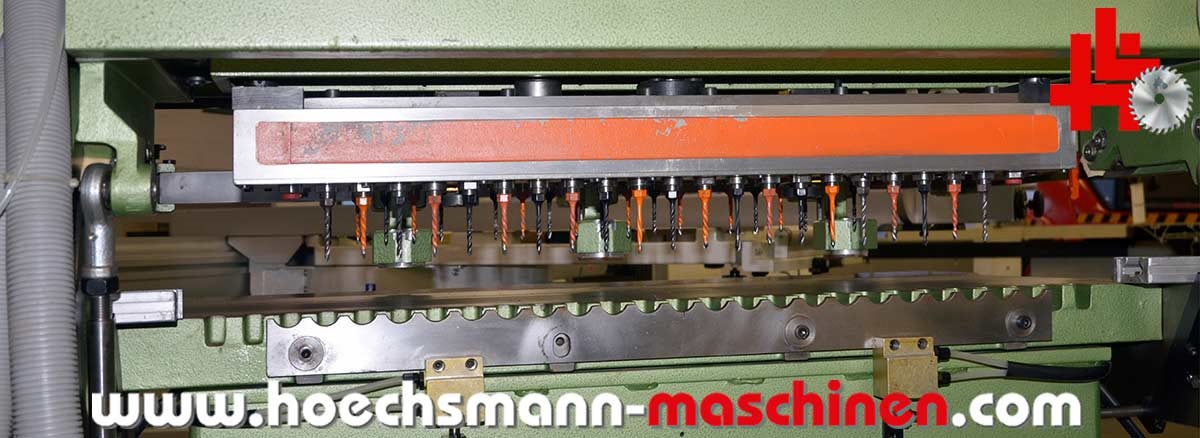

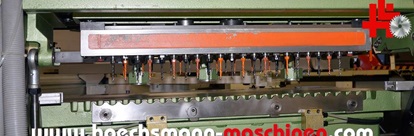

Each of the two drilling beams has 23 drilling spindles with 32 mm spindle center distance.

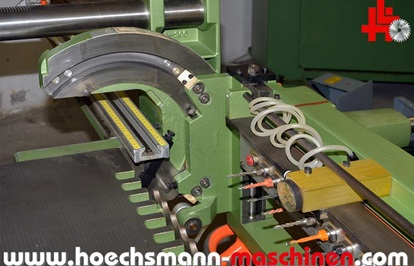

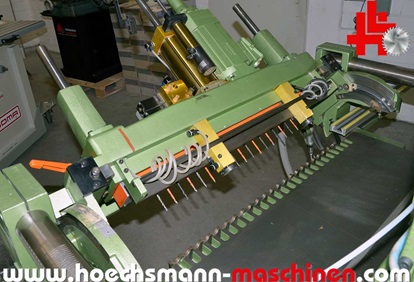

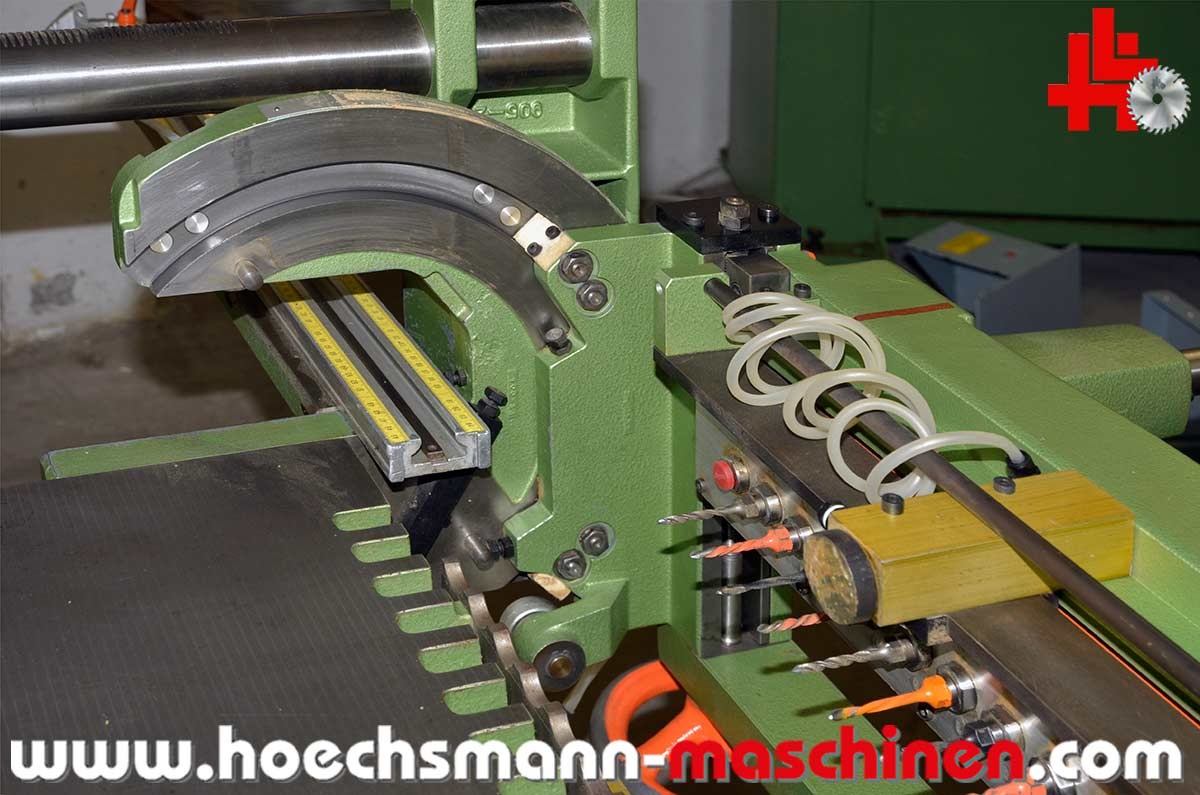

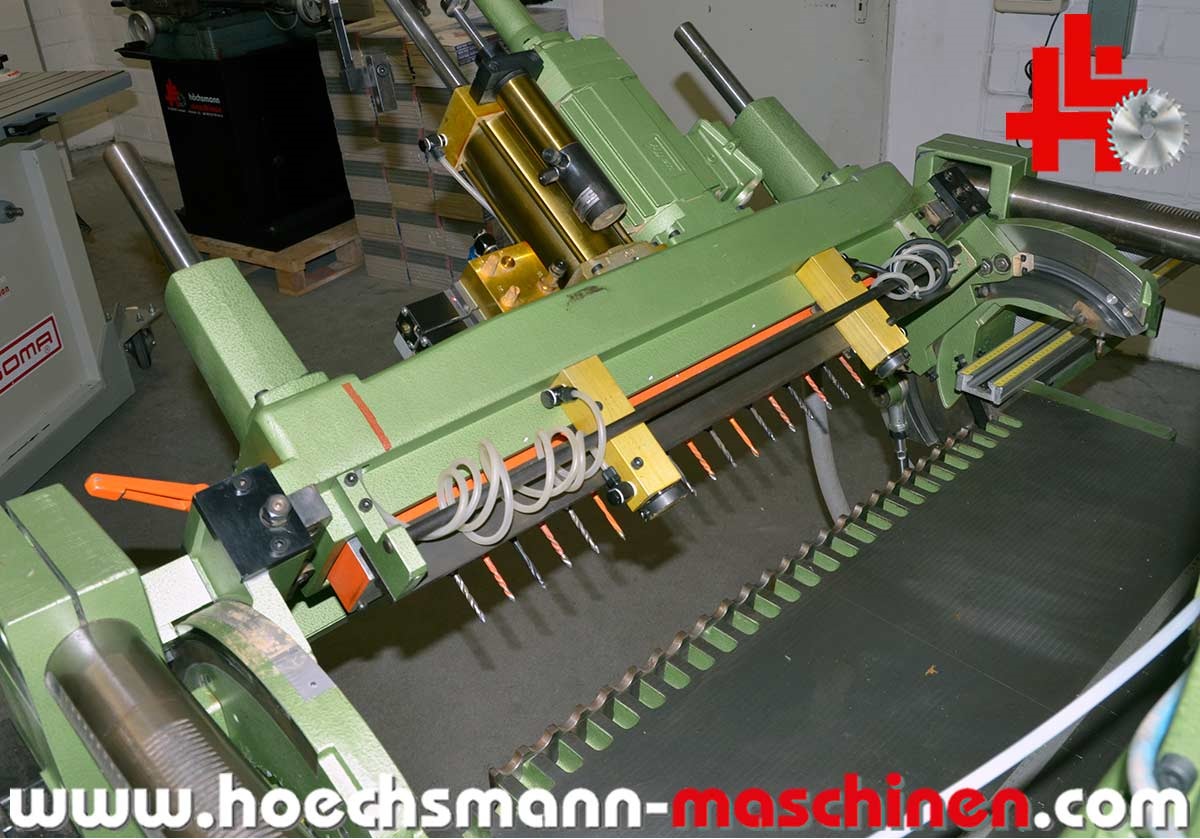

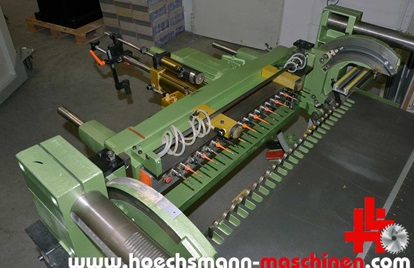

Drill beam I can be steplessly tilted from 0° to 90° using 2 compressed air cylinders mounted on the side of the machine frame; a degree scale is fitted as standard,

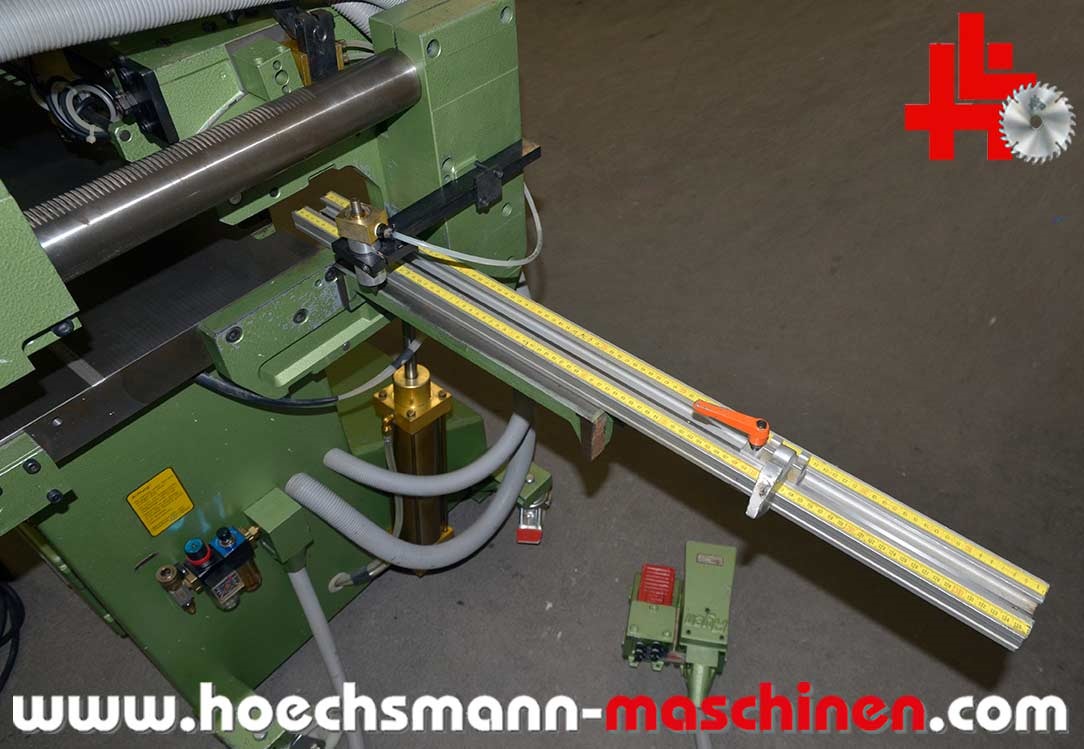

Fixed stops are provided for the 0°, 45° and 90° positions; the drill beam slide can be adjusted from 0 mm to max. 80 mm via a handwheel.

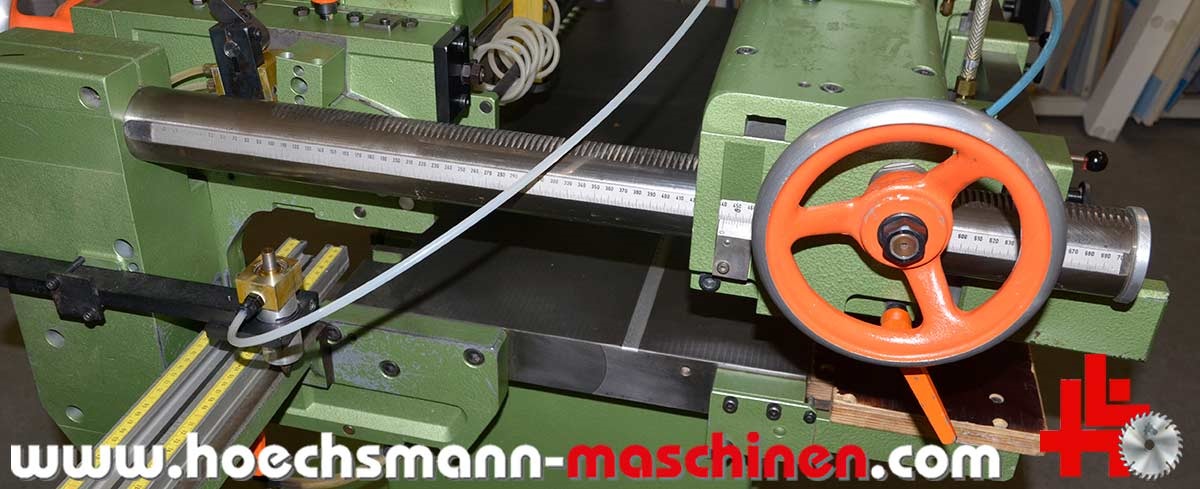

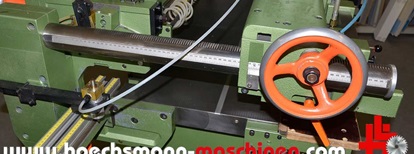

Drill beam II is arranged vertically and can also be moved from 8 mm to max. 570 mm on 2 heavy cantilever support shafts by means of a hand wheel and rack and pinion guide.
movable. The arrangement of the two separately controllable drill beams results in the following working options:
Drilling programs:
Drilling program 1
Beam I: vertical 90° ON
Beam II: vertical 90° ON
Both drilling beams vertical, both electrically switched on:
For drilling 2 rows of holes simultaneously.
Drilling program 2
Beam 1: vertical 90° ON
Beam II: vertical 90° OFF
Both drill beams vertical, but only drill beam I
electrically switched on:
For drilling - flat-sided dowel holes
- center sides
- intermediate floors.
Drilling program 3
Beam 1: horizontal 0° OFF
Beam II : vertical 90° ON
Drill beam I horizontal, drill beam II vertical;
only drill beam II electrically switched on:
For drilling - mounting plates or
cross mounting plates
- 1 row of holes with subsequent
turning of the workpiece
- pot hinges
- Connecting fittings or
eccentric connecting fittings
Drilling program 4
Beam 1: horizontal 0° ON
Beam II: vertical 90° ON
As drilling program 3, but both drilling beams electrically
switched on: For drilling connecting fittings
with front and flat-sided drilling.
Drilling program 5
Beam 1: horizontal 0° ON
Beam II: vertical 90° A US
Only the horizontal drilling beam is switched on electrically:
For drilling
- frontal dowel holes
- Frames, moldings, architraves
or additional option for drilling program 5 for drilling mitres at any angle between 0° and 90° with fixed stops at 0° , 45° and 90°:
Beam I: any mitre angle between 0° and 90° ON
Beam II : vertical 90° OFF
The working width is 704 mm, the passage 860 mm; however, the open-sided design of the machine means that wider workpieces can also be
can be drilled at any time without any problems. Both drive motors each with 2.2 kW (3 HP), 2,800 rpm. Thanks to the installation of pressure-dependent switches, the drive motors and thus the drill beam spindles only rotate during the drilling stroke.

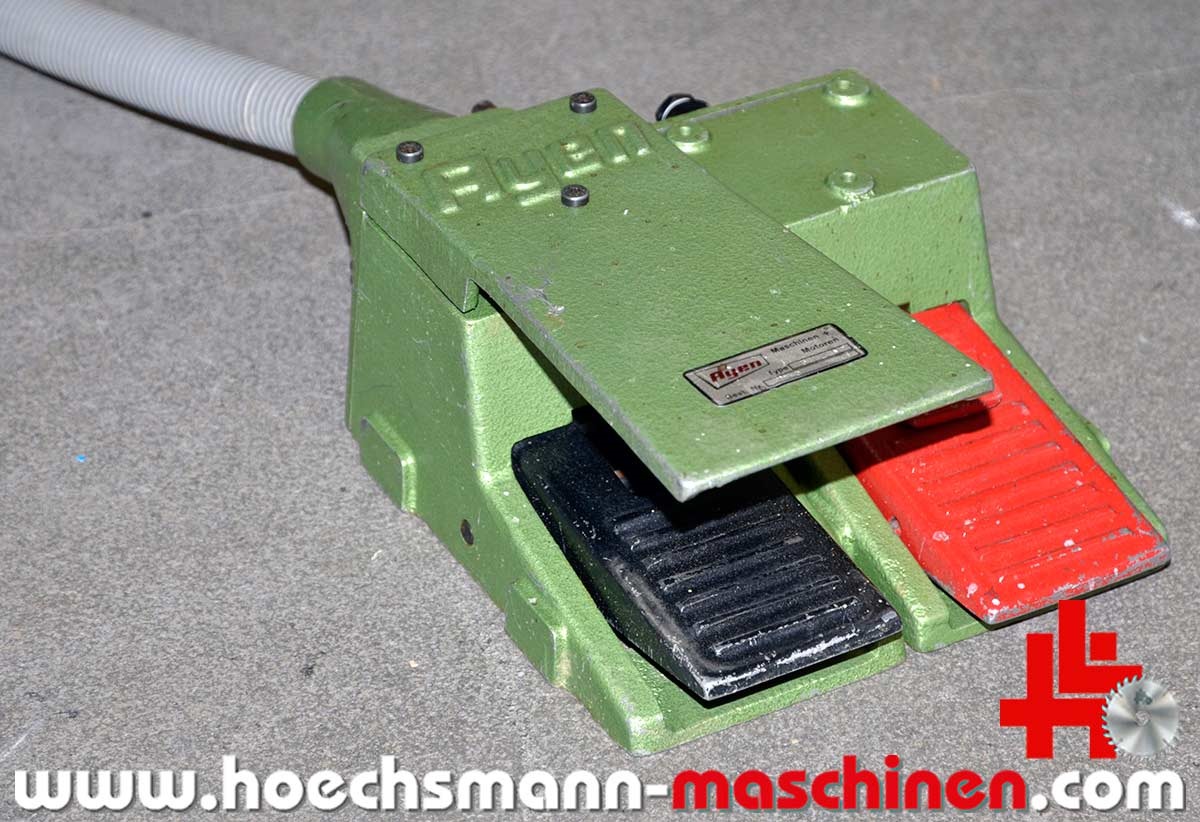

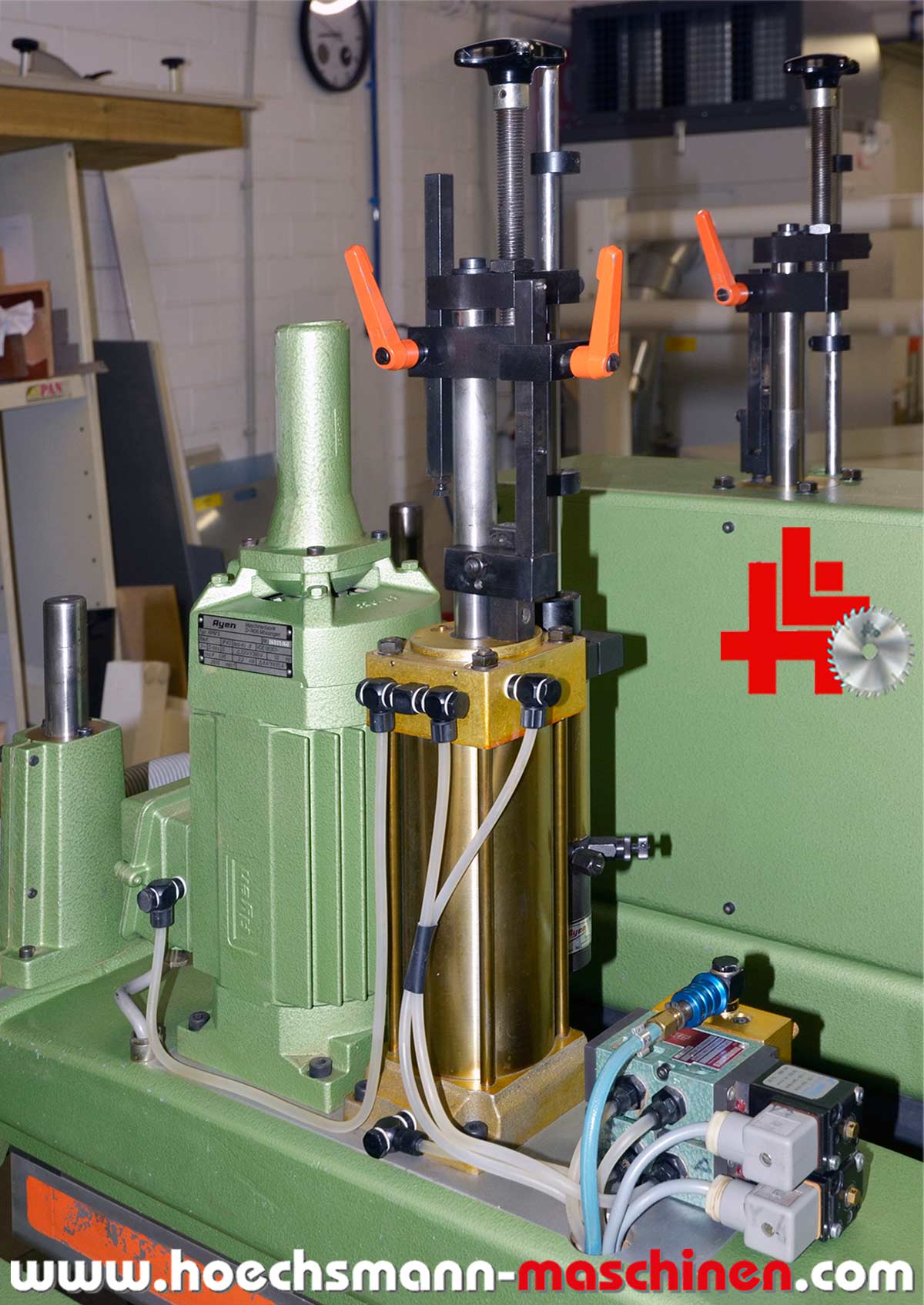

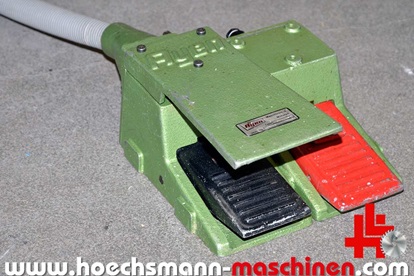

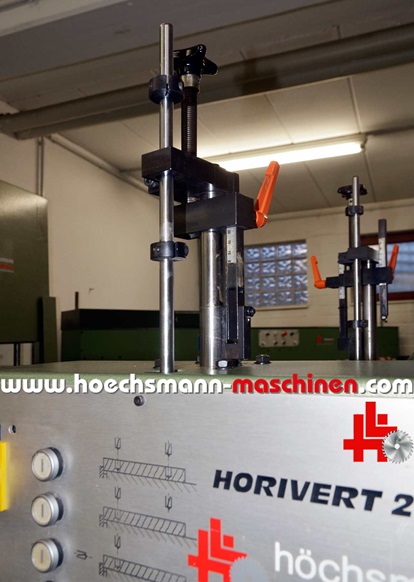

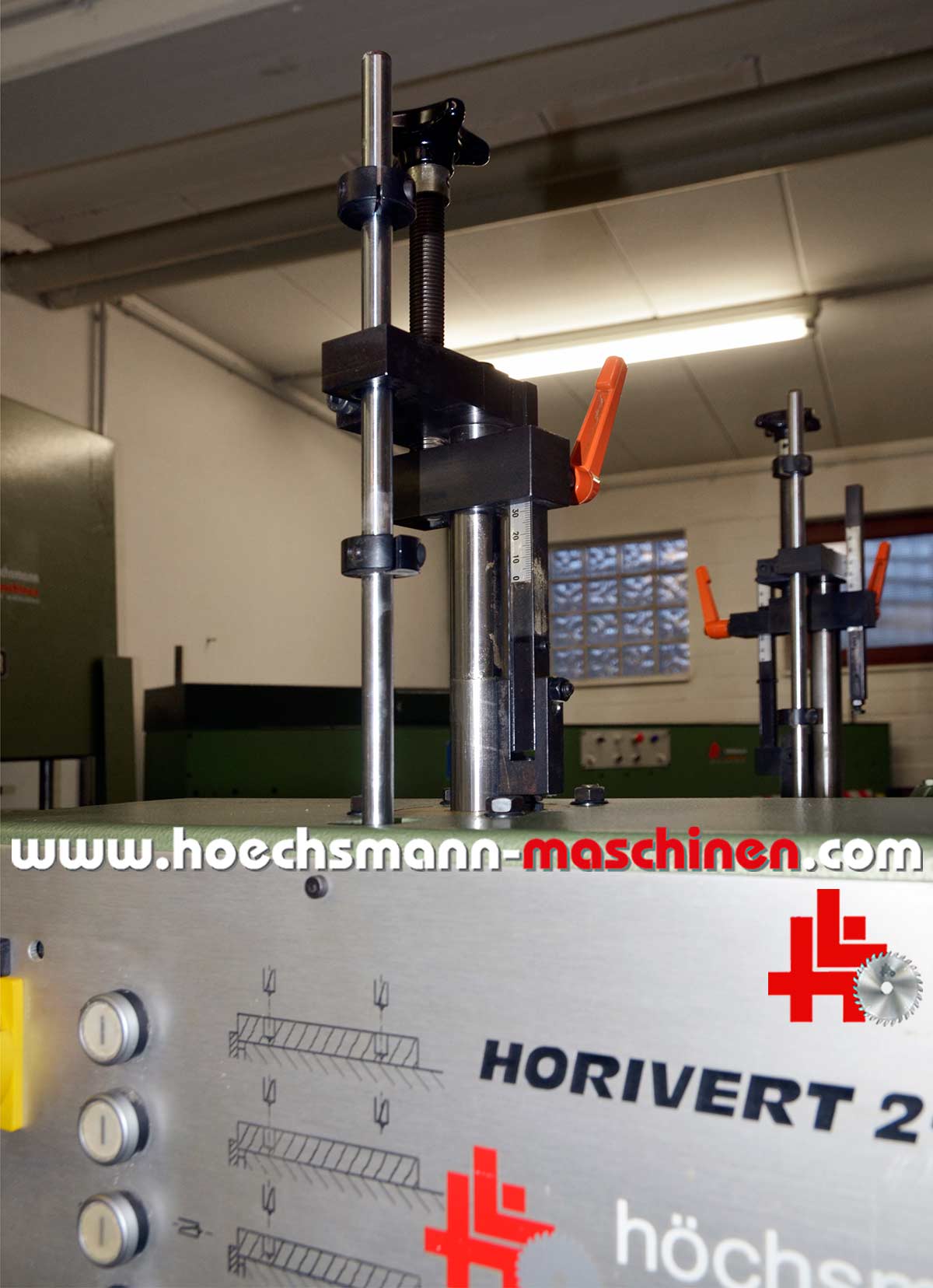

The START is triggered by a foot valve; a sequence control system is fitted as standard, i.e. the TENSION - DRILL - UNTENSION work steps are carried out automatically one after the other.

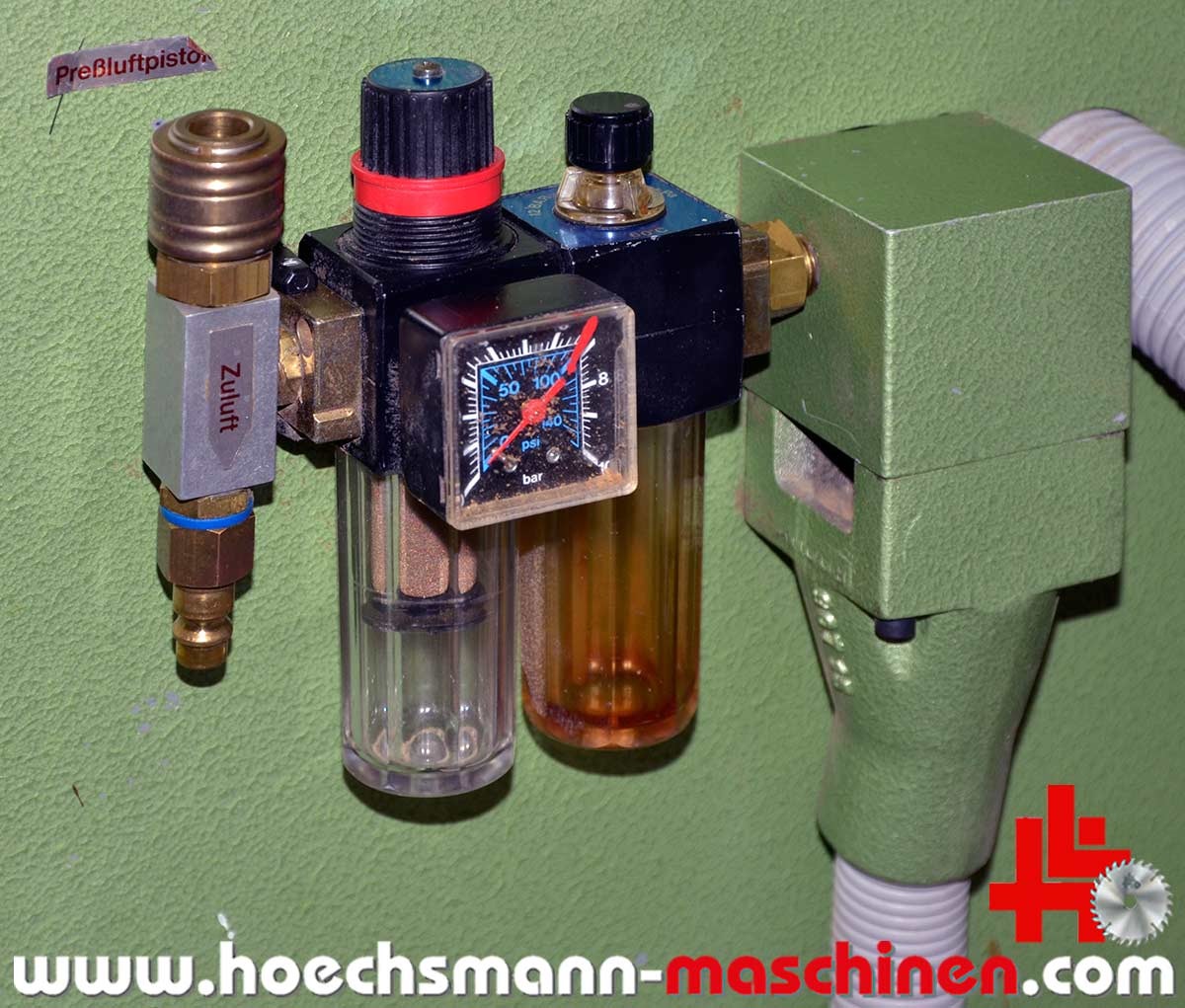

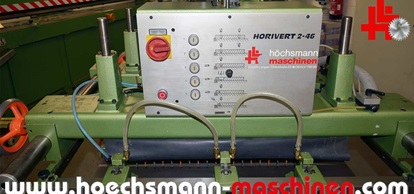

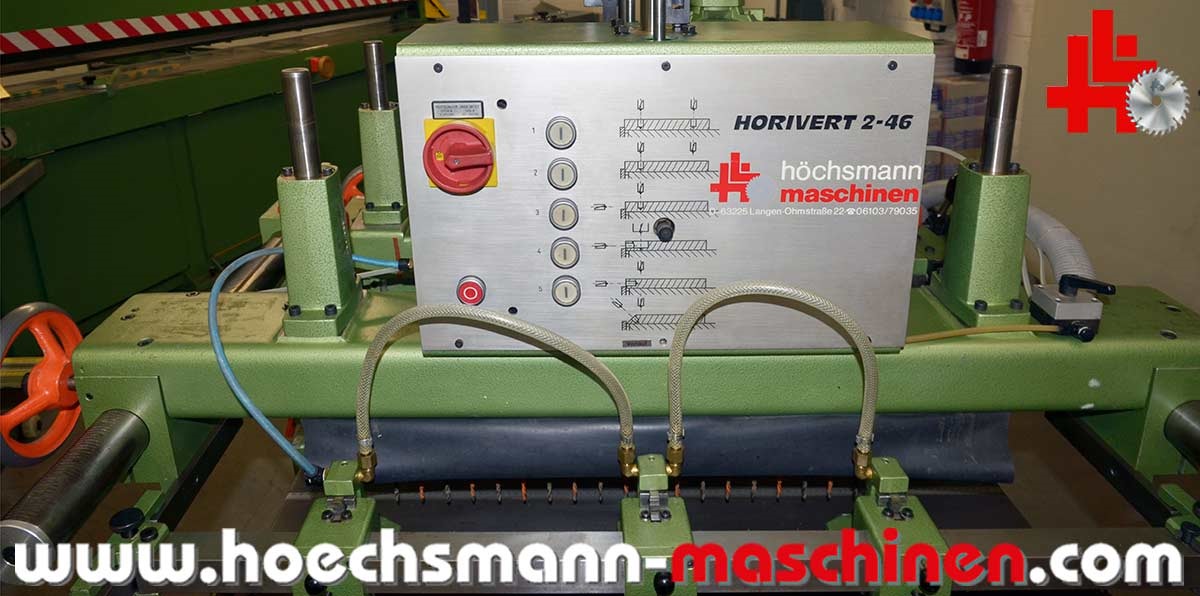

are carried out automatically one after the other. Machine equipped with illuminated drilling program selection buttons, electric main switch (lockable) and motor protection switch, compressed air maintenance unit G 1/4, emergency stop foot valve. 23 per boring bar Spindle center distance 32 mm Tool holder per boring bar 12 x M10 left 11 x M10 right Drive power 2 x 2.2 kW (3 HP), 380 V, 2800 rpm Drilling depth Drilling beam I horizontal (with drill bit length 120 mm) 120 mm max Vertical(with drill bit length 45 mm, max. workpiece thickness 100 mm) 45 mm max Drill beam II vertical (with drill bit length 45 mm, max. workpiece thickness 100 mm) 45 mm max Workpiece clamping height 100 mm max Space requirement With depth Height Drill beam I in 90° position *1) 1.400 1.240 1.720 Drill beam I in 0° position *1) 1.400 1.910
