Plattenaufteilanlage SCM Gabbiani P 75

SCM panel sizing line Gabbiani P 75

Machine valution, machine purchase, machine sale of woodworking machines

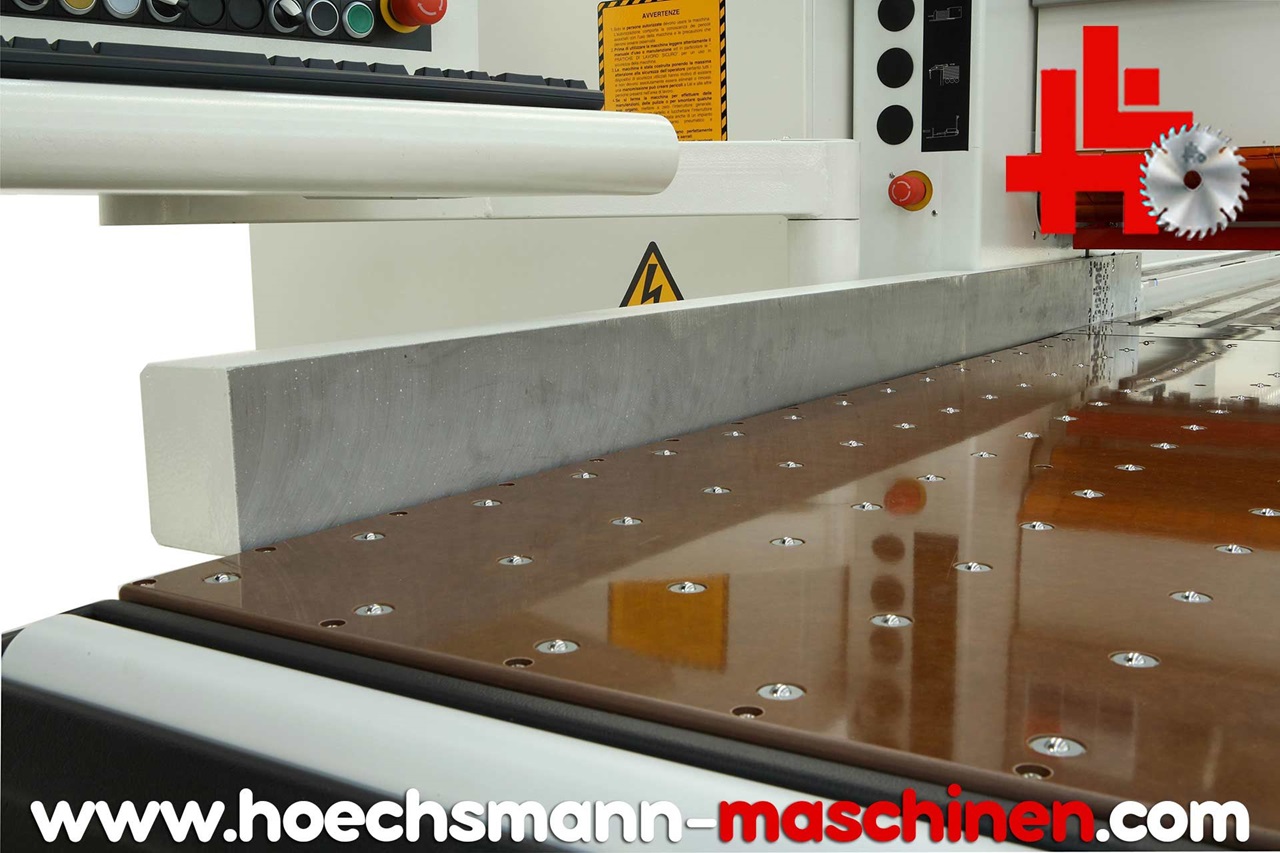

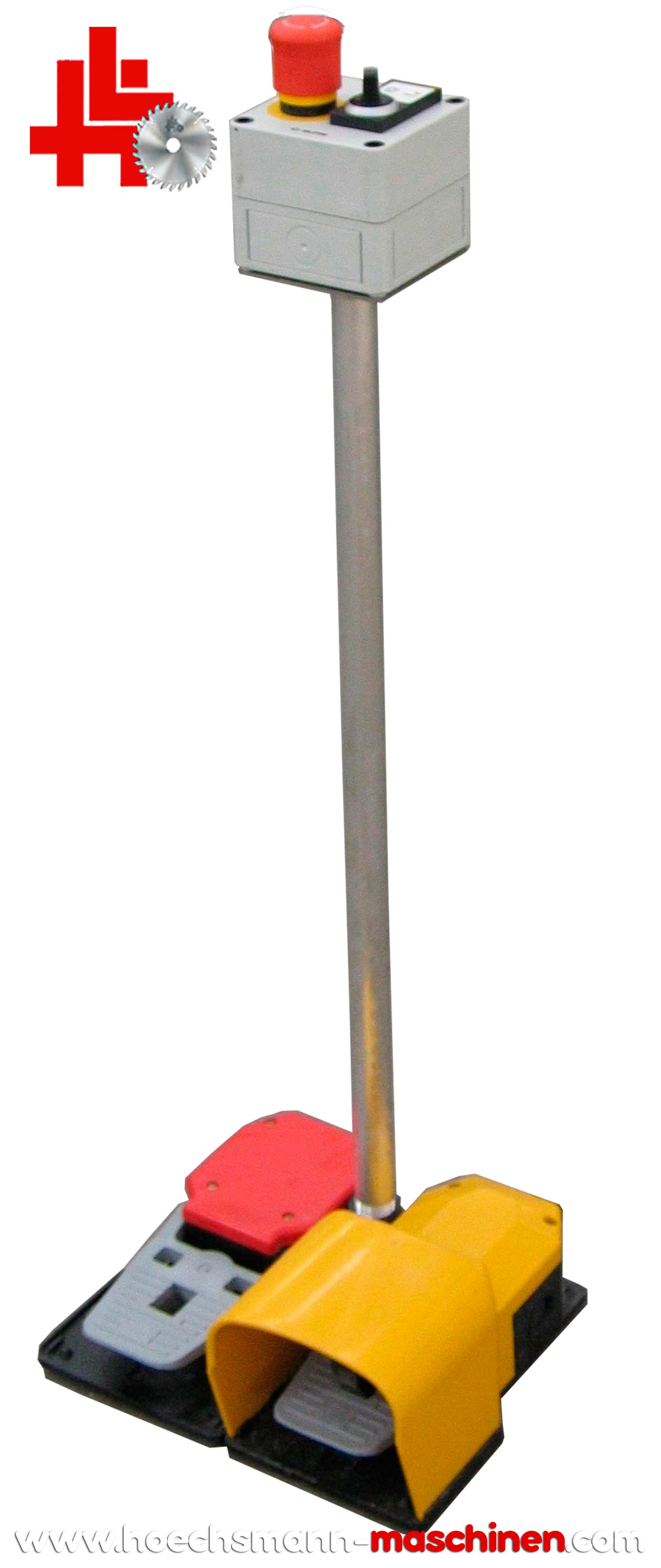

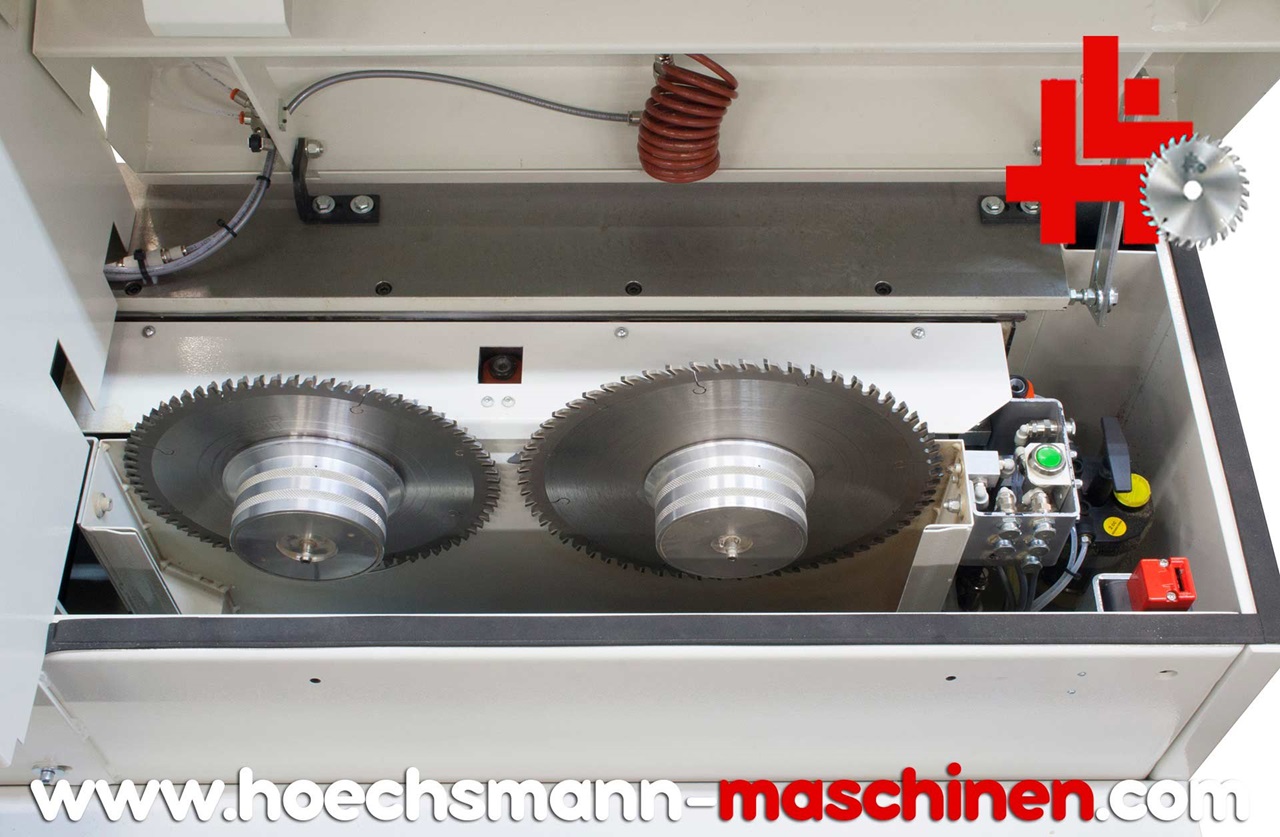

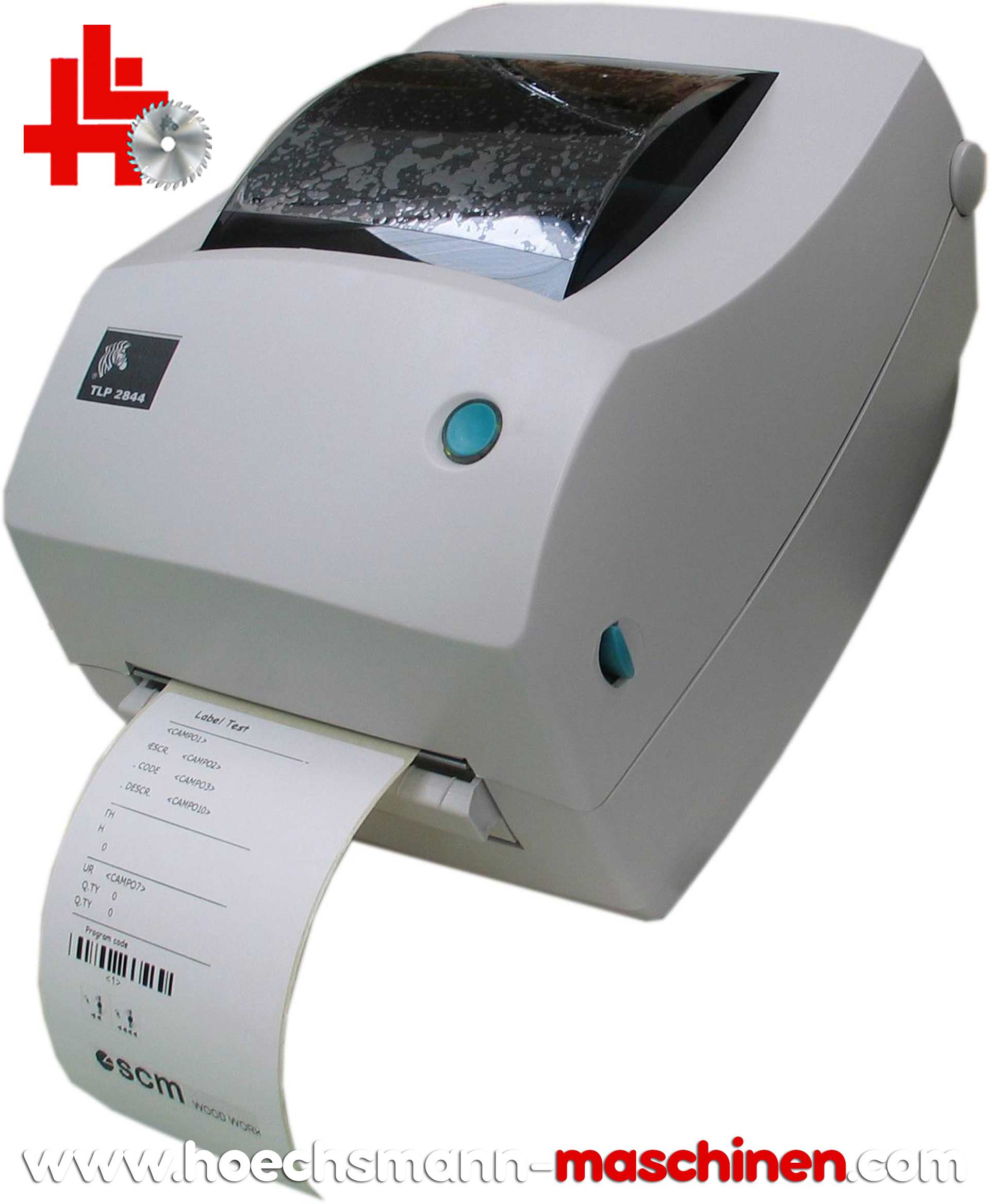

SCM panel sizing line, type Gabbiani P 75, new machine ,CE sign, cutting area 3.300 x 3.200 x 70 mm, main saw motor 9 kW, saw blade Ø= 320 mm, saw blade speed 4.600 rpm, scoring saw with 200 mm diameter and 6. 100 rpm, scoring motor 1.3 kW, saw carriage with independent stroke control for saw and scoring saw blade, optimized vertical stroke of saw blade on 2 steps, grooving device with manual height adjustment of main saw blade (max. groove height 35 mm), 6-60 m/min saw carriage speed, grooving device 60 m/min (forward 25 m/min) slide speed, total compressed air requirement 7 bar - 300 l/min, exhaust air requirement 2. 190 m³/h - 20 m/sec, 3x 120 mm suction nozzles, eye-M control panel with full HD touch display, SCM Maestro Cut software with cut optimization Maestro Pattern and Maestro Cut 3D Editor (live 3D cut simulation, cut plan editor, XLS data import from Excel),  Label printer with barcode, 9 pincer grippers, magnetic tape to monitor the slider position, double lateral automatic aligner consisting of a roller before and one after the cutting axis, foot switch for start and stop of the working cycle, 1 air cushion table fixed 2. 500 mm x 600 mm with stop and 2 movable air cushion tables 2.500 x 600 mm, new exhibition machine in Langen, dimensions WxD 5.400 x 6.000 mm, approx. 3,2 to weight



SCM Gabbiani P 75 Plattenaufteilanlage

To avoid trouble, please note the following important information:

All prices are net plus statutory VAT.

Sales exclusively to commercial customers.

Some of the machines contain accessories that are subject to a surcharge. Reservations only with a deposit. All used and demonstration machines are sold as is, with no warranty.

Only written agreements apply.

Payable immediately before or at the latest upon delivery or by leasing (by arrangement). Delivery difficulties (difficult entry into the building, lack of equipment for unloading, etc.) must be clarified beforehand. Delivery from Langen warehouse. Orders are subject to change and are checked by the management. The date of receipt of the orders is decisive in the case of multiple sales. Only the first order is valid! Delivery only after clarification of payment! Furthermore, our terms and conditions apply. You can find our terms and conditions on our website or on our order confirmations.
