Maweg Rahmenpresse Euro Z

4.790,- Euro

Maweg Euro Z frame press

Machine valution, machine purchase, machine sale of woodworking machines

Maweg, hydraulic frame press, EuroNova Z, heavy, robust machine, built in 1996, CE mark, with pneumatic quick adjustment system


Insertion dimension / press length max. 3,600 mm

Insertion dimension / press height max. 2. 600 mm

3 vertical pressure cylinders stroke 180 mm

3 horizontal pressure cylinders stroke 100 mm

Pressure force per cylinder 2100 kN / 21000 N

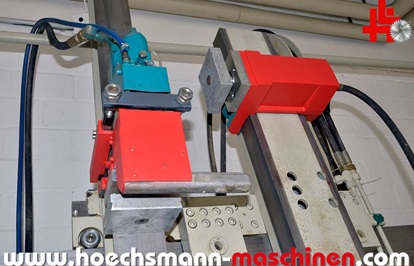

Quick cylinder adjustment in 3 mm increments

Pressure plate 100 x 120 mm

Medium pressure beam with shut-off valve

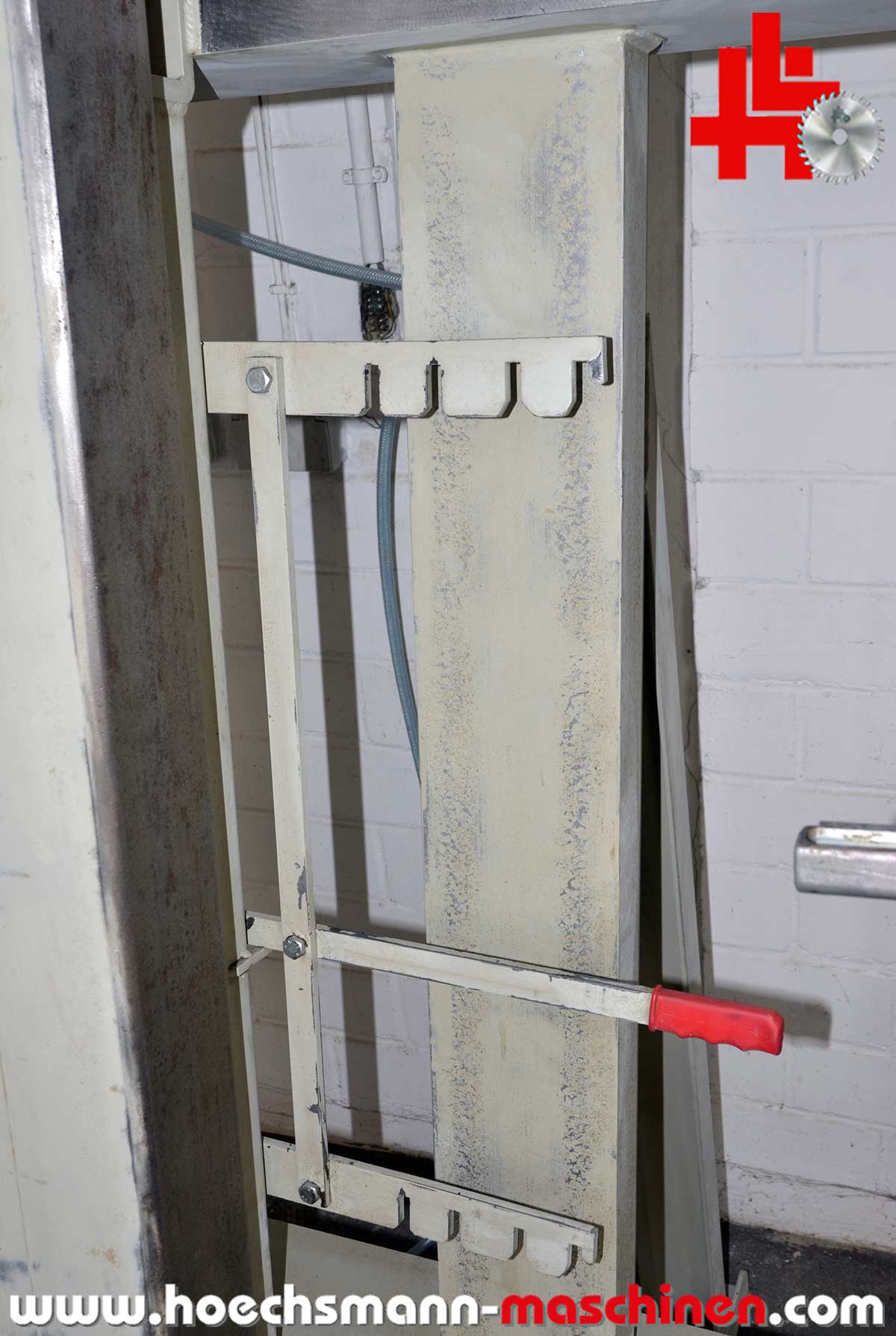

Quick adjustment via pneumatic locking system with fine adjustment

Weight compensation for vertical cylinders

Hydraulic locking device for movable cross pressure cylinders

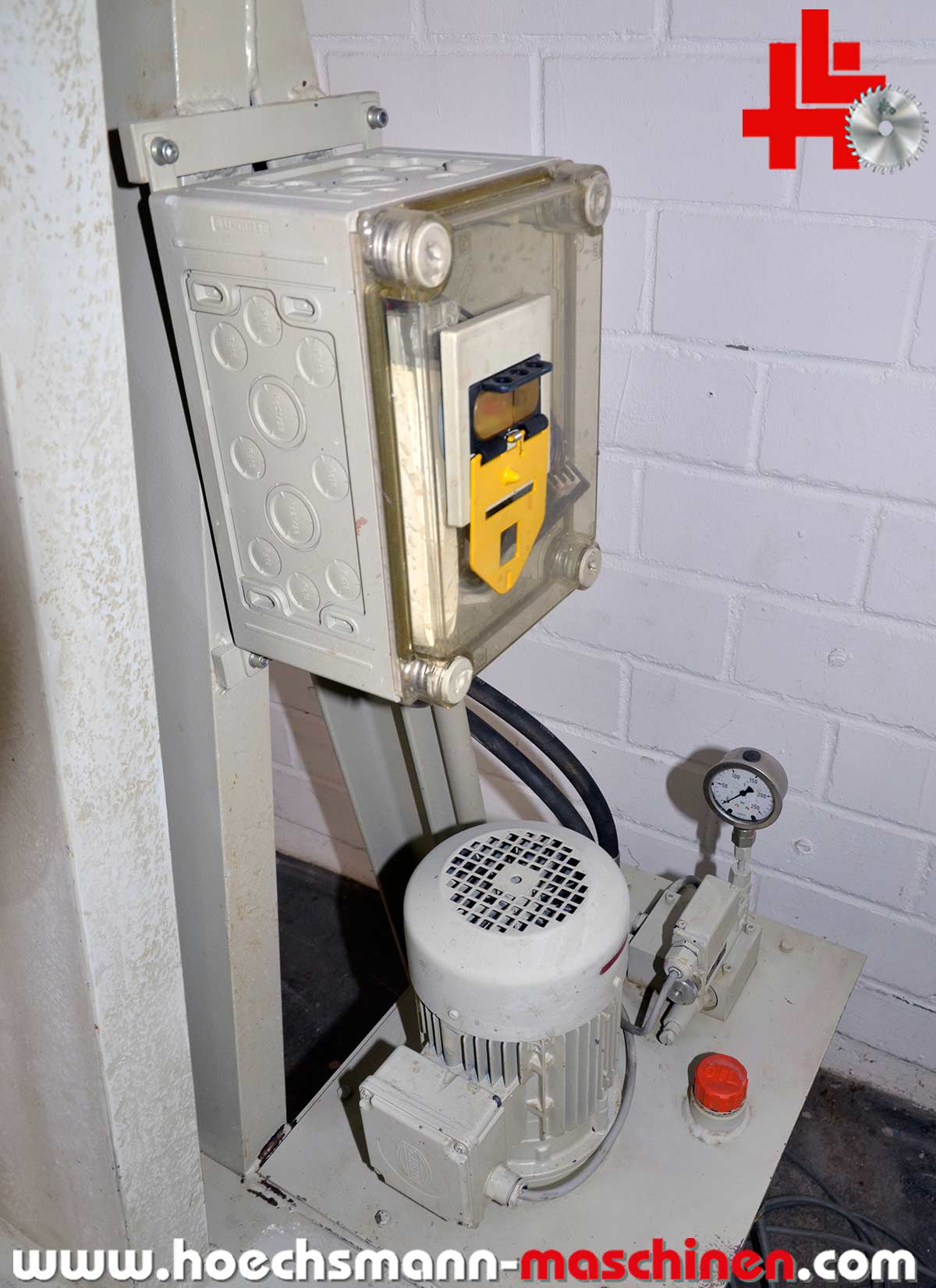

Electrical connection 1.5 kW / 380 V

Control on the right of the horizontal pressure beam

Machine dimensions


Length 4. 600 mm, width 1,300 mm, height 3,200 mm, weight 2,100 kg

Machine completely overhauled, technically and visually in very good condition, ready for demonstration in our showrooms, former list price over € 17,500 ex works

Maweg Rahmenpresse Euro Z

Maweg Euro Z frame press

To avoid trouble, please note the following important information:

All prices are net plus statutory VAT.

Sales exclusively to commercial customers.

Some of the machines contain accessories that are subject to a surcharge. Reservations only with a deposit. All used and demonstration machines are sold as is, with no warranty.

Only written agreements apply.

Payable immediately before or at the latest upon delivery or by leasing (by arrangement). Delivery difficulties (difficult entry into the building, lack of equipment for unloading, etc.) must be clarified beforehand. Delivery from Langen warehouse. Orders are subject to change and are checked by the management. The date of receipt of the orders is decisive in the case of multiple sales. Only the first order is valid! Delivery only after clarification of payment! Furthermore, our terms and conditions apply. You can find our terms and conditions on our website or on our order confirmations.
